Product Details:
Payment & Shipping Terms:
|

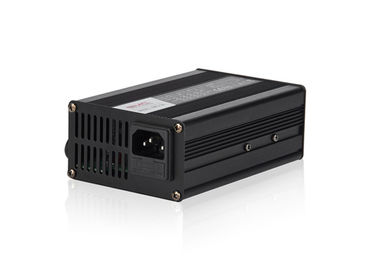

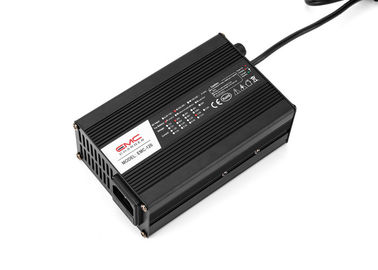

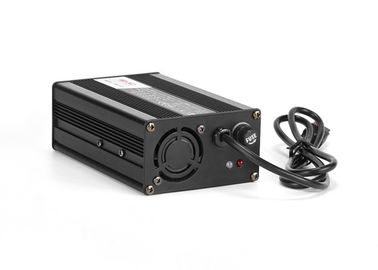

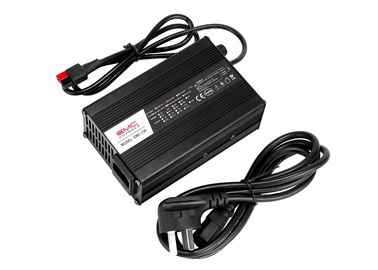

| Name: | Lithium Battery Charger | Model: | EMC-120 |
|---|---|---|---|
| Size: | 135*90*50MM | Weight: | 0.8kg |
| Color: | Black | Material: | Alumminum Alloy |
Buyer attention:
In order to confirm if our charger is suitable for your battery pack,
please send the following info to us by email:
(1) Battery type:
(2) Number of cells in series:
(3) Capacity of battery pack(AH):
(4) The maximum charge voltage:
(5) AC input volt:
(6) AC plug: EU,US or Asia
(7)DC connector: Anderson style connect as default
Main Protection:
Over current protection
Over voltage protection
Over temperature protection
Short Ciruit protection
Reverse polarity protection
Charging Mode:
Lithium battery: CC/CV(Constant Current/Constant voltage)
Lead acid battery:CC/CV and float charging
| Power | Size(mm) | Weight kg |
12V | 24V | 36V | 48V | 60V | 72V |
| 3S/4S | 5S/6S/7S/8S | 10S/11S | 12S/13S/14S | 15S/16S/17S | 20S | |||
| 120W | 135*90*50 | 0.8kg | 6A | 4A | 2.5A | 2A | - | - |
| 180W | 155*90*50 | 0.9kg | 7-8A | 4-5A | 3-4A | 3A | 2A | - |
| 240W | 170*90*50 | 1.2kg | 9-10A | 6-7A | 5A | 4A | 3A | 2A |
| 360W | 170*90*63 | 1.5kg | 11-20A | 8-12A | 6-8A | 5-6A | 4-5A | 3-4A |
| 600W | 207*120*70 | 2.2kg | 21-25A | 13-18A | 9-12A | 7-10A | 6-8A | 5-6A |
| 900W-A | 220*135*70 | 2.6kg | 26-35A | 19-25A | 13-18A | 11-15A | 9-12A | 7-10A |
| 900W-B | 260*150*90 | 3.5kg | 26-40A | 19-25A | 13-18A | 11-15A | 9-12A | 7-10A |
| 1200W-A | 260*150*90 | 3.5kg | 41-50A | 26-33A | 19-20A | 16-18A | 13-15A | 11-12A |
| 1200W-B with lcd | 260*150*90 | 4.5kg | 41-50A | 26-33A | 19-20A | 16-20A | 13-15A | 11-12A |
| 1500W | 300*150*90 | 4kg | 51-80A | 34-45A | 21-30A | 19-25A | 16-20A | 13-16A |
| 2000W | 330*150*90 | 4.5kg | 81-100A | 46-60A | 31-40A | 26-30A | 21-25A | 17-20A |
